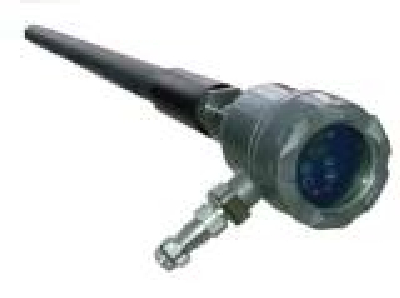

ZFD-04 Type Intelligent Integrated Flame Detector

ZFD-04 series flame detector is integrated by flame probe and signal processor. There is no control cabinet in contral room any more, reducing installation cost of the whole system and workload of wiring. It upgrades temperature test and self-diagonosis, especially adopts the self-diagnosis way of analog falme signal. It can do 100% self-diagonosis for flame detector return circuit. It is not only the innovative product manufactured by ZN company, but also the exclusive adoption of technology at home and abroad.
Technical Parameter and Characteristic
    1. Operation wavelength: ultraviolet ray 190-550nm; visible light 380-780nm; infrared ray 300- 1100 nm/800- 3200 nm
2.Sensor type: solid   oprics: quartz lens
3.Input power supply: 24VDC±10% power consumption: ≤4W
4.Electrical connection: 7 cores aviation plug
5.Electric relay output: flame electric relay, keep flame off, close with flame; alarm electric relay, close with fault
6.Analog output: 4mA~20mA, series of maximum load: 750Ω
7.Situation display: display4 digital tubes and 2 light-emitting diodes  keyboard entry: 4 small buttons
8 .Protection Grade  IP66
9.Working temperature: electronic circuit -25ºC~ 80ºC; storage temperature -40ºC~ 100ºC; optical fiber front end 500ºC
10 .Relative humidity: 0%~95%, non condensing
11 .Cooling and blowing wind requirements: wind regime: clean, dry, low temperature; wind pressure: greater than 3KPa; rate of flow: cooling air flow rate of each flame detector is 0.9 cbm/min; interface of cooling air:  M39X2

Structure Installation and Wiring
Length of ZFD-04 series integrated flame detector is decided by length of boiler burner secondary air duct. The front end of flame detector is composed of outer catheter, inner catheter, lens module, fiber optic components, cooling air interface etc. Probe structure see picture 1. Integrated flame detector is installed in secondary air duct in boiler burner. The hole of burner make front end and back end in the same core.Sight line of integrated flame detector front part should keep clear. If there is obstacle, it should be opened pore and moved. During installation, back supporting tube and centre line of secondary air duct should be kept parrallel; there is no interference between integrated flame detector and ignation device. Keep the space that is needed for plugging by integrated flame detector.
